JSON

‍

Setting up from the customer record

Setup fields

destination endpoint - use this text box to control the

destination url the customer data should be sent to

this value will be used for an axios.post request with the full

request model (more info below) as the payload

api key - use this field to pass an api key if one is needed for

the destination endpoint

under only supports api keys passed via headers at this time

api key header - use this field to set the attribute name that the

api key should be passed with in the request headers

The UI to the right will only exist during our development and

testing phase. Once we have determined the pattern works the

under team will move this configuration to the company settings

page and users will only have to press the brackets icon to transmit

data to the saved endpoint details.

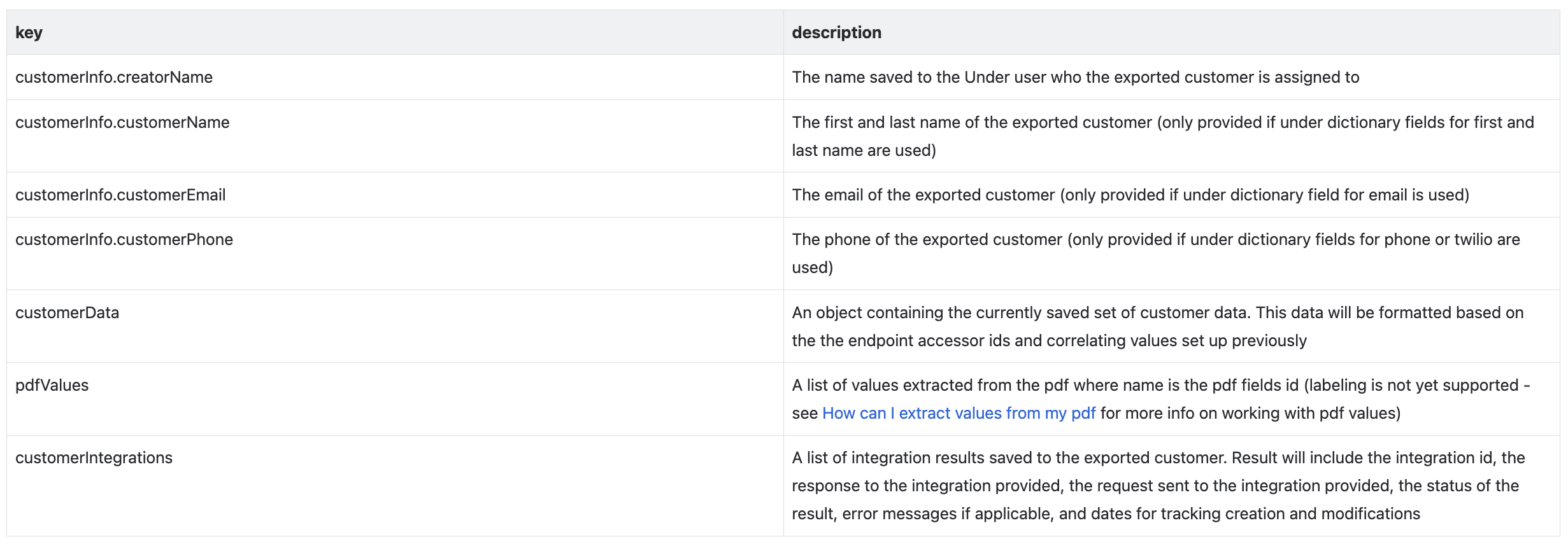

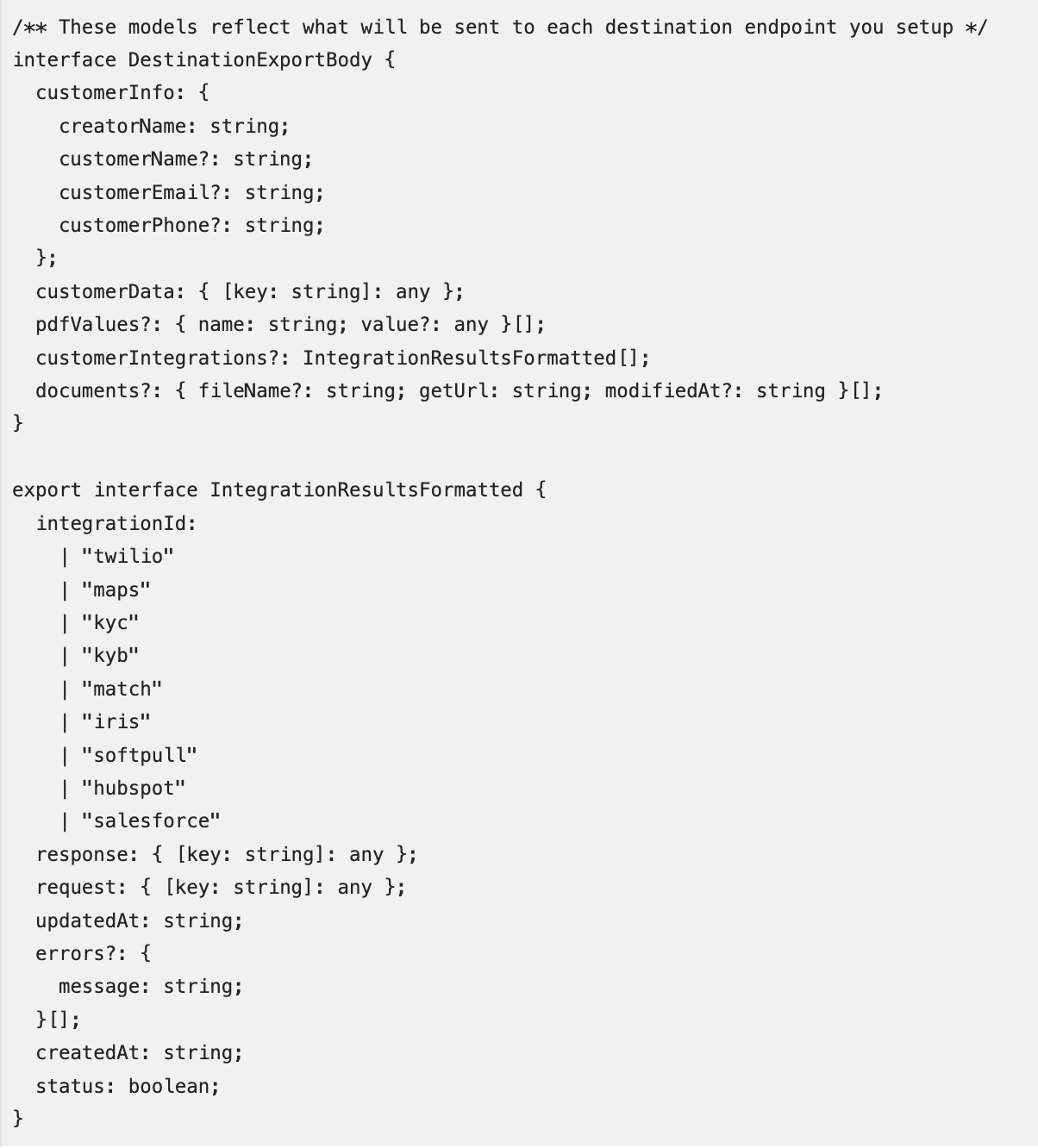

Request model to destination endpoint

customerInfo - this attribute will contain all customer info and all values currently saved on the customer applicationId? - the under id assigned to the application that the customer was boarded under (can be used for grouping customers by application)

additional application info can be found on the applicationInfo attribute below

templateId? - this will be used in place of application id once our new templates flow is released (can be used for grouping customers by template)

customerId - the under id assigned to the customer that data is being exported from

ucId - the under id assigned to the user within your company that boarded this customer (can be used for grouping customers by user)

additional user info can be found on the ucInfo attribute below

createdAt - the date the customer was created

customerData (type = {[key: string]: value: any} ) → more details below

customerIntegrations - this attribute will contain a list of all integration responses that are currently saved on the customer integrationId - an under assigned id for the integration that was run (can be used to group results by integration) integrationLabel - a string with the name of the integration that the response is for

run - boolean for whether or not this integration was run for the customer

If a customer has not run any integration the customer integrations array will be empty - otherwise this attribute can be used to skip empty results

response - the json response our system has saved for this integration if it was run

errors[] - an array of integration errors if any occurred

errorLabel - a string describing the error type

errorMessage - the stored error message

alloyType - if the integration response was from alloy this will return either KYC (Individual) || KYB (Business) documentPresignedGetUrls - this attribute will be an array of url strings that can be used for subsequent calls to download all documents currently saved to the customer

each array item is a url that includes pre authorized signatures to download a document from S3 (urls expire after 1 hour) urls can be used with a get method using https

see more details about what documents can exist in the Supported Under Document Types section below applicationInfo - this attribute will include identifying information about the application the customer was created on (if the application has not been deleted)

applicationName - a string with the application or template name that the customer was filled out under creatorName - the name of the user who originally created the application or template

createdAt - the date the application or template the customer was run on was created

lastModifiedAt - the date the application or template the customer was run on was last changed

ucInfo - this attribute will include identifying information about the user within under that the customer was boarded under email - a string with the contact email for the user who the customer was boarded under

userName - a string with the full name of the user who the customer was boarded under

phoneNumber - a string with the contact phone number for the user who the customer was boarded under

Customer Data Model

The customer data attribute on the under request is an object with key value pairs that are currently saved to the customer. Below we will cover how under keys work and the different data types you can expect from under.

Under data types and corresponding values

Data Type

Notes

Example Key

Example Flat Value(s)

Example Special

Value?

Text Field

Value saved to field key as it was entered

C#ExampleTextField

"C#ExampleTextField" : "Text Field Value"

N/A

‍

Number Field

value saved to field key with optional formatting setup in the app editor

*example has no mask selected

C#ExampleNumberField

"C#ExampleNumberFiel d": "100"

N/A

Dropdown field

selected value is saved to field key as a string

*options are set up in the app editor, first input is the option label and second input is the option value

C#ExampleDropdownFi eld

"C#ExampleDropdownFi eld": "dropone"

N/A

Radio Field

selected value is saved to field key as a string

*options are set up in the app editor, first input is the option label and second input is the option value

C#ExampleRadioField

"C#ExampleRadioField ": "radtwo"

Checkbox Field

selected value is saved to field key as a boolean

C#ExampleCheckboxFie ld

"C#ExampleCheckboxFi eld": true

Switch Field

value saved to field key as a boolean

C#ExampleSwitchField

"C#ExampleSwitchFiel d": true

Phone Field

value saved to field key with 11111111111

format

*country code +

number w/ no

formatting

C#ExamplePhoneField

"C#ExamplePhoneField ": "13177120510"

Date Field

value saved to field key in ISO String Format

C#ExampleDateField

"C#ExampleDateField" : "2024-01-

04T06:00:00.000Z"

‍

Checkbox List Field value saved in two different formats (both

will be present in the

customer data)

Flat Values - each

selected value is saved

individually to

fieldKey.optionValue

as a boolean

Special Value - values

C#ExampleCheckboxLis tField

"C#ExampleCheckboxLi stField.checkone": true

"C#ExampleCheckboxLi stField.checktwo": true

1 2 3 4

"C#ExampleCheckb "checkone",

"checktwo"

]

are also saved to the

field key as an array of

optionValue: boolean

*options are set up in

the app editor, first

input is the option

label and second input

is the option value

Must Be Equal To X Field

values saved in two different formats (both will be present in the customer data)

Flat Values - each value is saved individually to fieldKey.keyMadeFrom Label (see below about how keys are made fromlabels)

Special Value - values are also saved to field the field key as an object of

1

fieldKey: {

2

keyMadeFromLabe

3

keyMadeFromLabe

4

}

*sub fields are setup in the app editor, label is entered and key is automatically created by removing label

spaces and casing

C#ExampleMustEqualX Field

"C#ExampleMustEqualX Field.xvalueone": "50"

"C#ExampleMustEqualX Field.xvaluetwo": "50"

1

"C#ExampleMustEq

2

"xvalueone": "5

3

"xvaluetwo": "5

4

}

Click to Agree Field

value saved to field key as boolean

C#ExampleClicktoAgree Field

"C#ExampleClicktoAgr eeField": true

‍

Auto Complete Address

Field

address line 1 value is saved to field key as a string. All sub fields (line 2, city, state, zip) are also saved to their

respective field keys

*auto complete

address is setup in the app editor and the sub fields are all treated

C#BusinessAddressAuto Complete

"C#BusinessAddressAu toComplete": "123 test address"

…remaining fields follow above rules for their respective data types

normally for their

respective data types

Same As Field

same as field value is saved to the field key as a boolean. When this boolean is true all values in the component are copied according to how it was setup in the app editor. If the boolean is false than the customer filled these values out themselves.

*same as fields are setup in the app editor and values are handledand saved following normal rules for their respective data types

C#SimilarBusinessAddre sses

most common use case for this is same as address fields or same as bank fields

example:

field label → Check box if legal address is the same as business address

copied fields follow

above rules for their

respective data types

‍

PDF Default Field Names Disclaimer

Our pdf mapping product differentiates from pdf only fields using prefixes within their field ids. These field ids are auto generated whenever a field is dragged from the custom field generators section onto the pdf (image shown below on the left). If the keys are changed to a custom key of your choosing the data will save correctly. You can edit and confirm these fields by clicking the appropriate box and updating the form field name attribute (image shown below on the right)

PDF data types, corresponding values, and restricted keys

PDF field ids that begin that match the restricted keys pattern will not have data saved to the customer data object (the keys are reserved for pdf only fields and are saved to the document rather than the customer data)

Text - saves string value as entered to pdf form field name

Default field key - TEXT_WIDGET_${uuid}

Dropdown - saves the selected option as a string to the pdf form field name

COMBO_BOX_WIDGET_${uuid}

Checkbox - saves the value entered in the Value* input when setting up the checkbox to the pdf form field name (as a string) CHECKBOX_WIDGET_${uuid}

Radio - saves the value entered in the Value* input when setting up the radio options (as a string)

RADIO_BUTTON_WIDGET_${uuid}

Signature - no data is saved unless multi signer flow is active (if it is each owner signature can be found in the supporting documents pre signed get array)

Agent Signature - no data saved

Date Signed - no data saved

Supported Under Document Types

Generated Documents - these are automatically generated documents from the under system

Generated PDF - the completed pdf under generated using customer data and signatures

Esig Confirmation - a document with data that confirms a customers signature validity using the below attributes Record Id - a uuid that will be present on every page of the signed pdf. This is used to align an esig confirmation document to a completed pdf

Last Updated - the date the customers data was last changed

Application Name - name of the application that the customer filled out

Pages - a count of all of the pdf pages

Signer (or signers for multi signer flow)

First Name - the signers first name

Last Name - the signers last name

DBA Name - the DBA name for customer

Phone - contact phone number for the customer

Email - the signers email

Signature - copy of the customers electronic signature

IP Address - IP address used at the time of signature

Time Zone - Time zone where the signature took place

Date Signed - Date the customer signed the pdf

Supporting Documents - supporting documents from the form can be setup and added via the app editor Supported File Types - .jpg, .png, .pdf, .csv, .xls, .xlsx, .doc, and .docx

Max File Size - 10MB

Under User Uploaded Documents - user uploaded documents added via the customer record Supported File Types - .pdf, .jpg, and .jpeg

Max File Size - 10MB

Under Response Model (visible in console network logs response) dataSent - this attribute will include all data that was sent to the destination endpoint

destinationResponse - this attribute will include the response our endpoint received from the destination

Integration Responses

KYC

same response as the raw tab in customer record

KYB

same response as the raw tab in customer record

Twilio

phone number used

status message

valid indicator that reflects whether or not the mfa check passed

Hubspot

response message explaining outcome with contact ID included

Maps

includes google fetch url to see location

Softpull

shows response message and includes a link to the softpull dashboard

‍

‍
